Primitives

Primitive and basic types such as string and int display using a default editor that corresponds with their type. The default editor can be overridden by adding data annotations.

Supported primitive types include:

  • bool: Displays as a checkbox
  • char: Displays as a single-character text input
  • string: Displays as a text input
  • byte, sbyte, short, ushort, int, uint, long, ulong: Displays as an integer number input
  • float, double, decimal: Displays as a numerical input

The following data annotations can be used to enhance the standard editors:

Each of these are explained below:

[Number]

The [Number] data annotation can be used to decorate a numeric field (e.g. int, decimal, long) and provide a UI hint to the admin interface to display an html5 number field.

The step property can be used to specify the precision of the number e.g. 2 decimal places

A nullable numeric type indicates it is an optional field, while a non-null numeric type indicates it is a required field.

Optional parameters

  • Step: Maps to the step attribute on a number html input field. This can be used to control the precision of the number entered. E.g. use a step value of '0.1' to allow a decimal value to 1 decimal place. The default value is '1' which uses integer level precision. A special value of 'any' can be used to allow any number type.

Example

public class ExampleDataModel : ICustomEntityDataModel
{
    /// <summary>
    /// Renders a numeric input to two decimal places. As the decimal
    /// type is nullable, this is an optional field.
    /// </summary>
    [Number(Step = "0.01")]
    public decimal? ExampleDecimal { get; set; }
}

Output:

Decimal numeric field example

[MultiLineText]

The [MultiLineText] data annotation can be used to decorate a string property and provide a UI hint to the admin interface to display a textarea field.

Optional parameters

  • Rows: The number of visible lines of text in the text editor. Defaults to 4.

Example

public class ExampleDataModel : ICustomEntityDataModel
{
    [MultiLineText(Rows = 8)]
    public string? ExampleMultiLine { get; set; }
}

Output:

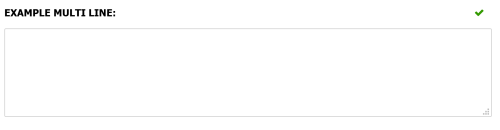

Multi-line text field example
